Tire Block Cutting Machine

Main Applications

Tire block cutting machine is a small tire crushing equipment, it is usually used together with tire sidewall cutter and tire strip cutter. Tyre block cutter is designed to cut long rubber strips (from sidewalls or treads) into uniform rubber chunks. These blocks can then be fed into shredders or rubber grinders for further processing.

Related

Inquiry
View Recyclng Line Application

Tire Strip Cutting into Rubber Blocks

Tire block cutter machine is mainly used to crush rubber strips, it can cut the waste strips into small pieces of about 3*5*8 cm. Using the rubber block cutter is simple and efficient:

  • Feed the 3–5 cm wide rubber strips into the hopper.
  • The tire chunk cutter blades rotate to chop the stips into 5-6 cm chunks.
  • The final rubber blocks fall into the discharge tray, ready for shredding or grinding.
  • The machine only needs a little manual operation, feed the rubber strips into the inlet, the block cutter will feed by itself.

Technical Hightlight of Tyre Block Cutter

  • Powerful Motor Options: We offer two models of tire block cutting machines to meet different recycling capacities. The QKJ-358 common tyre block cutter is equipped with a 5.5 kW motor, ideal for small and medium-sized facilities. For higher production demands, the updated tyre block cutting machine features a powerful 18.5 kW motor, capable of sustained high-load operation.
  • Production Capacity: The basic model of rubber block cutter handles up to 800 kg/h, suitable for low to mid-volume operations. The upgraded model processes up to 1500 kg/h, making it a solid choice for commercial-scale tire recycling plants.
  • Block Size Precision: Both machines are designed to convert tire strips into uniform rubber blocks. The standard output of the QKJ-358 is approximately 3×5×6 cm per chunk. The upgraded version produces 5×5 cm blocks, offering better consistency and compatibility with automatic feeding systems.
  • In terms of layout: The smaller model has a compact design of 1.0 × 0.8 × 1.4 meters, weighing about 800 kg. The upgraded tire block cutting machine is slightly larger at 1.3 × 1.1 × 1.5 meters, with a more reinforced frame weighing 1200 kg.

Tire Block Cutter for Sale Specification Data

TypeQKJ-358 Common Tire Block CutterUpdated Tire Block Cutter
ItemTechnical ParameterTechnical Parameter
Motor Power5.5KW18.5KW
Machine Capacity800kg/h1500kg/h
Specification of cutting Blocks3*5*6cm5*5cm
Size (L*W*H)1*0.8*1.4m1.3*1.1*1.5m
Weight800kg1200kg

More Machine Images

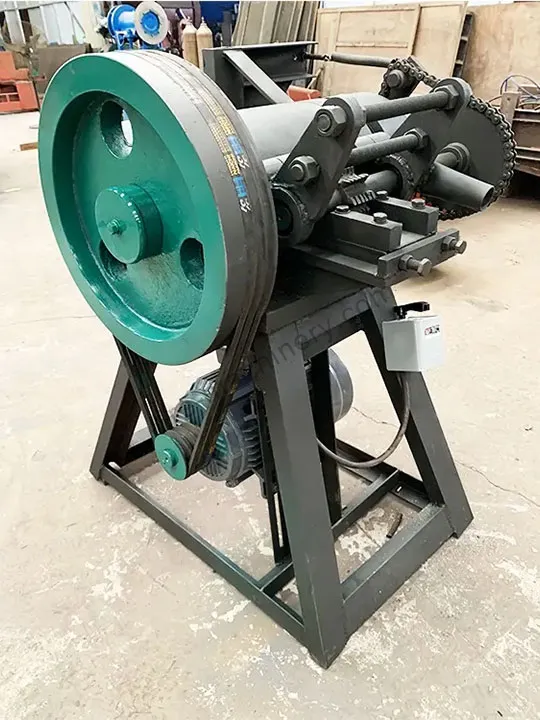

waste tire block cutter
waste tire block cutter

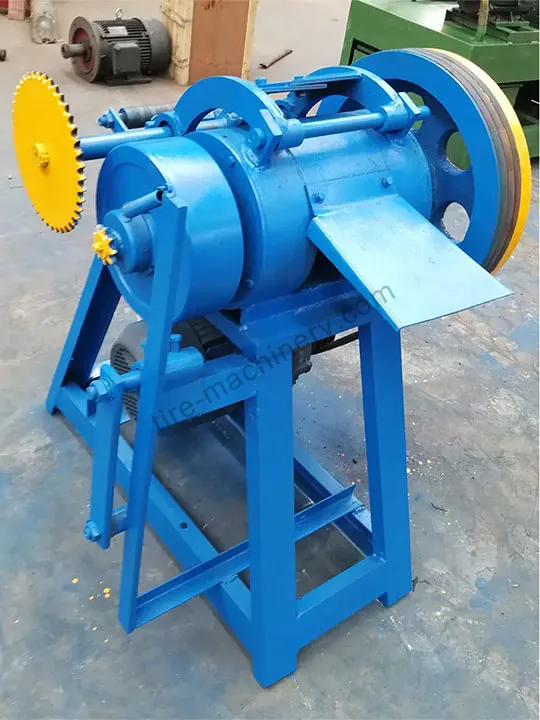

tire block cutter
tire block cutter

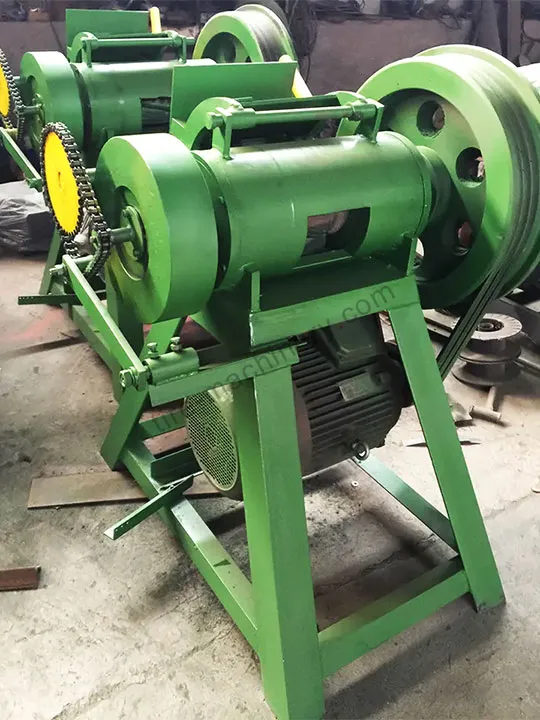

tyre block cutter
tyre block cutter

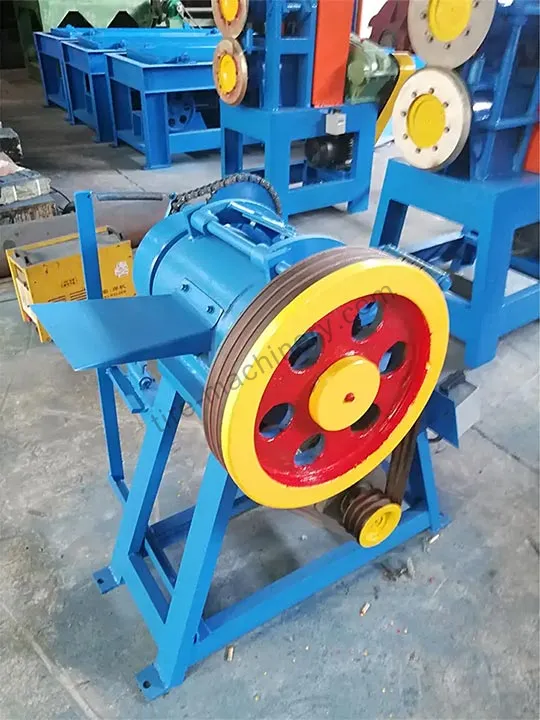

tyre block cutting machine
tyre block cutting machine

Frequently Asked Questions

Most frequently asked questions by customers who purchased Shuliy tire block cutter.
What types of tire strips can this tyre block cutter handle?

The tyre block cutter works well with strips from passenger car tires, truck tires, and even thicker sidewalls with embedded steel. It’s most effective when paired with a tire strip cutter for uniform strip feeding.

Can the rubber block cutter output size be adjusted?

The block size is determined by the blade spacing and cutter mold. We offer custom configurations if you need different block dimensions. The standard output is 3×5×6 cm or 5×5 cm, depending on the model of rubber block cutter.

What safety features does the machine include?

The tensioner operating handle and locking mechanisms prevent tire slippage during cutting. Operators remain at a safe distance using the operation lever without needing to touch the blade area directly.

How often do the blades of the tire chunk cutter need replacement?

Blades typically last for thousands of cuts, depending on the material (nylon vs. steel-belted tires). The tire chunk cutter uses hardened alloy blades that can be re-sharpened multiple times. We also provide spare blades with the machine.

What happens if rubber blocks jam inside the tyre block cutting machine??

Our tyre block cutting machine includes an overload protection system. In case of block jamming, the motor will automatically shut off to prevent blade damage. The machine has a manual reverse switch to clear any blockages easily.

Is on-site installation or video training available?

Yes. We provide full installation guides, video tutorials, and remote support. For larger projects, on-site installation and training can be arranged. The tire block cutting machine is semi-automatic and easy to learn with basic operator training..

Can you provide a complete tire recycling system including this machine?

Yes. We specialize in designing turnkey recycling lines with matching equipment: sidewall cutters, strip cutters, tyre block cutters, shredders, granulators, and even rubber tile presses. We also offer plant layout, installation support, and video operation guidance.

What happens if I need technical support or spare parts in the future?

We offer long-term after-sales support including video calls, spare part delivery, remote diagnostics, and blade replacements. Our tire block cutting machines are built for reliability, and we stock all key parts for fast global shipping.
