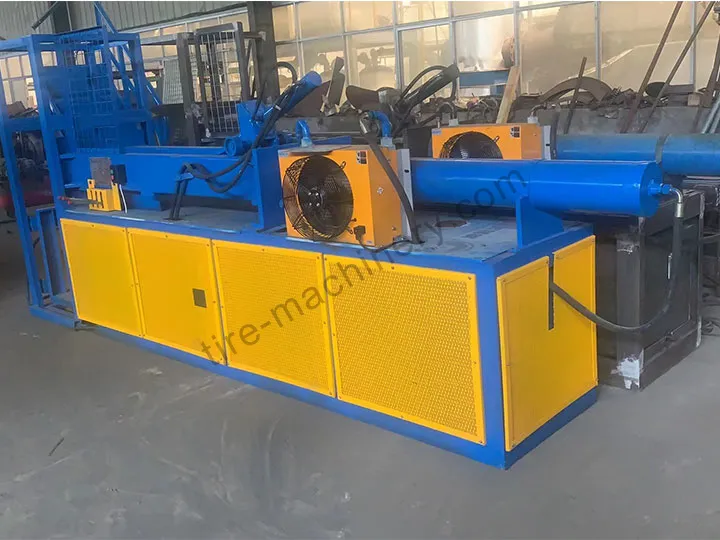

Hydraulic Tire Debeader Machine
The hydraulic tire debeader machine is used to completely pull out the steel wire inside the tire before crushing, especially for tires with a diameter of 900-1200cm. Removing the steel wire from the tire bead before crushing results in a cleaner finished rubber product and reduces wear and tear on the crusher. In addition, the extracted steel has a high market value. The tire debeader machine is available in single and double side processing models.
Related
How Does A Tire Debeader Work?
The tire is put into the machine and hooked to the inner rim of the tire. The pressure generated by the hydraulic cylinder pulls the wire out completely, while the inner wall of the tire ruptures with the pressure, accelerating the separation of the wire.
Configuration Options – Single vs. Double Hook Tyre Debeader
We offer two models of tyre debeader machines: single-hook and double-hook, both operated by powerful hydraulic systems.
Our tyre debeader machine comes in two models: single-hook and double-hook. Both are hydraulically powered and designed for medium to heavy-duty tire bead wire removal.
The single-hook model is a compact and economical choice, suitable for facilities with moderate tire volumes. It removes the bead wire from one side at a time, balancing performance and energy efficiency.

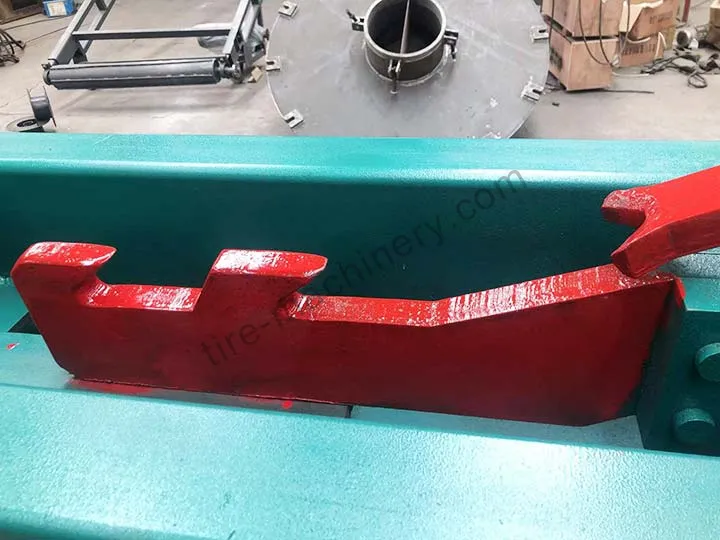

The double-hook tyre debeader offers increased speed and productivity by pulling steel wires from both sides of the tire simultaneously. This version is ideal for higher-capacity operations looking to maximize output without compromising on pulling strength or machine stability.
Both machines are built with durable hook assemblies, stable hydraulic systems, and support tires with diameters from 900mm to 1200mm. For exact specifications and power configurations, please refer to the parameter table below.
| Type | Single Hook |
| Machine Power | 11 KW |
| Dimensions | 4.1*0.7*1.7m |
| After Packing Size | 4.3*1.1*1.9m |
| Weight | 1400kg |
| Applicable Tire Diameter | 900-1200mm |
| Capacity | 20-30 pcs/h |
| Working Method | Pulling the steel wire out of the rim on one side of a truck tire |
| Type | Double Hook |
| Machine Power | 18.5 KW |
| Dimensions | 4.2*0.9*1.7m |
| After Packing Size | 4.4*1.1*1.9m |
| Weight | 1500kg |
| Applicable Tire Diameter | 900-1200mm |
| Capacity | 40-50 pcs/h |
| Working Method | Pulling the steel wire out of the rim on double sides of a truck tire |
Key Features of Our Tyre Debeader Machines

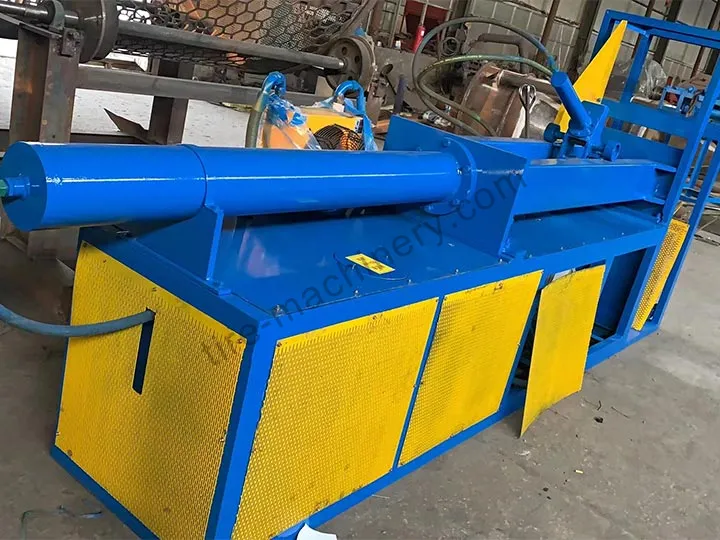

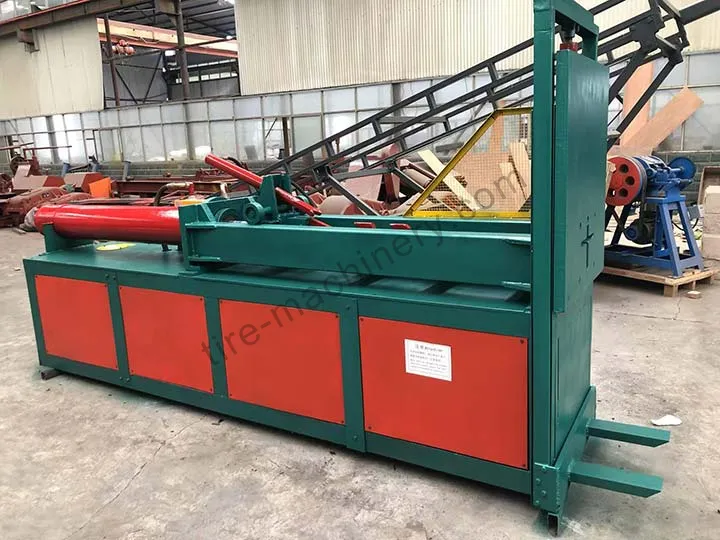

More Tire Debeader Images
Frequently Asked Questions
Most frequently asked questions by customers who purchased Shuliy tire debeader.Yes. Removing bead wire before shredding protects your shredder blades and prevents equipment damage. The tyre debeader machine is a crucial pre-treatment step in any tire recycling line.
If you process a small to medium volume of tires, the single-hook model is sufficient. For higher output and better efficiency, the double-hook tyre debeader is ideal—it removes wire from both sides at once.
The hook and cylinder are made from high-strength materials. Under normal use, the hook lasts 6–12 months, and the hydraulic system can operate for years with basic maintenance.
Yes. Our tyre debeader is built for heavy-duty operation and can run 8–10 hours per day under proper loading and oil temperature conditions.
Both models of tyre debeader for sale handle tires between 900mm–1200mm in diameter, including car, light truck, and medium truck tires. For OTR or oversized tires, a different model for OTR tire is needed.
Yes. For every tyre debeader for sale, we provide operation videos, wiring diagrams, remote guidance, and fast spare parts delivery.
