Tire Strip Cutter
The Tire Strip Cutting Machine is an essential piece of equipment used in tire recycling lines, especially after the tire bead and sidewall have been removed. This machine is designed to cut tire sidewalls into long rubber strips with width about 30-50mm. Whether you’re looking for a rubber strip cutter for small workshops or a strip cutter for truck and car tires, this model offers high performance with compact structure.
Related
How to Cut Tires into Strips?
After the tire sidewall removal machine has separated the bead, the remaining tread or sidewall is manually fed into the rubber strip cutter.
The tire is pressed between the upper and lower circular knives, which are powered by the main motor and reducer.
As the tire rotates along the main axis, it is cut into continuous, uniform rubber strips. The cutting width can be adjusted based on the downstream requirements.
This smooth and controlled operation makes the tire strip cutting machine ideal for semi-automatic production lines and small scale tire recycling plants.
Tyre Strip Cutting Machine Structure Overview
This semi-automatic tire strip cutter features a heavy-duty, wear-resistant design with the following key components:
Key Advantages of Tire Strip Cutting Machine
The tyre strip cutter is ideal for small scale tire recycling plants and is suitable for handling tires up to 1200mm in diameter. For larger tire sizes, we can customize a larger cutter.
Tire Sidewall Strip Cutter Specification
If you’re planning to build or upgrade a tire recycling line and need a reliable solution for how to cut tires into strips, this semi-automatic rubber strip cutter offers both strength and precision. Here’s a closer look at its performance:
| Item | Technical Parameter |
| Motor Power | 5.5 KW |
| Machine Capacity | 1000kg/h |
| Motor Speed | 45r/min |
| Size (L*W*H) | 1.3m*0.8*1.65m |
| Weight | 850kg |
| Width of Cutting Strip | 3-5 cm |

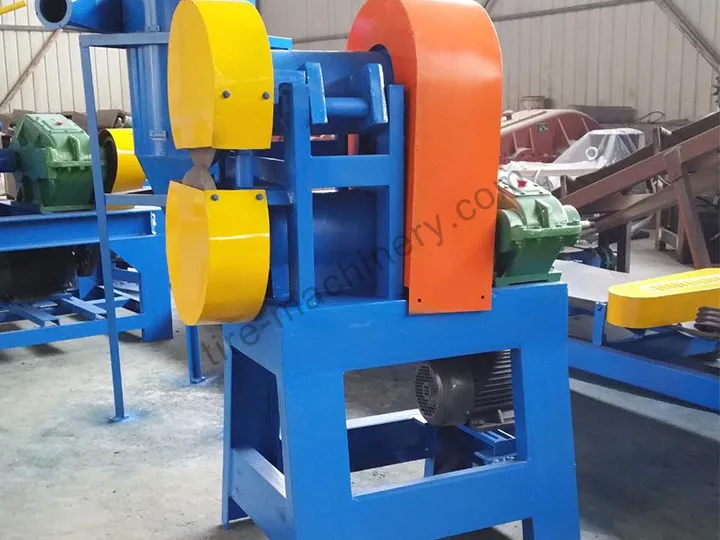

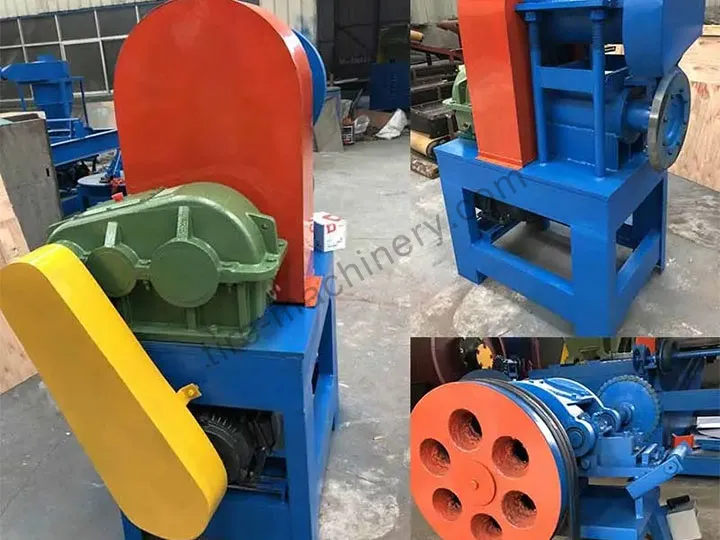

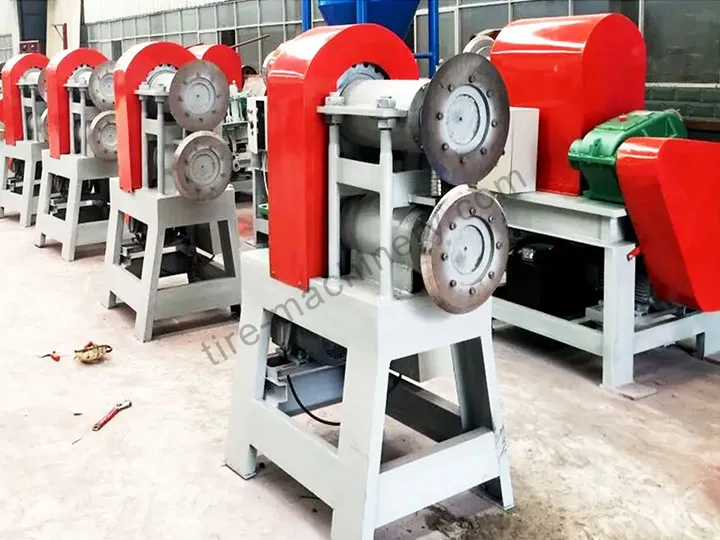

More Tire Strip Cutter Images
Frequently Asked Questions
Most frequently asked questions by customers who purchased tire strip cutting machine.This rubber strip cutter can process around 1000 kg of tires per hour, depending on operator speed and tire size.
The semi-automatic tire strip cutter runs on a 5.5kW motor, and we can customize the voltage to 380V, 415V, 440V, or others, depending on your country’s power standards.
Routine maintenance includes lubricating the main shaft and reducer, checking the blade sharpness, and tightening the protective covers. With proper care, the tire strip cutting machine can run continuously for several years with minimal issues.
No. The semi-automatic tire strip cutter is designed for simple operation. After a short training session, most workers can operate it safely and efficiently.
Our standard production lead time is 10–15 working days. We will confirm exact delivery time based on your order quantity and customization needs.
The blades on this tire sidewall strip cutter can be removed, re-sharpened, and reused multiple times. We also provide replacement cutter blades and detailed sharpening instructions.
Yes. The strip cutter for truck and car tires is typically the second step in a recycling line, following a sidewall cutter and preceding a shredder or granulator. We can help you design a complete system with all matching equipment.
Absolutely. We supply replacement blades, motor parts, and reducers for rubber strip cutter. We also provide installation guides, instructional videos, and remote technical support after delivery.
